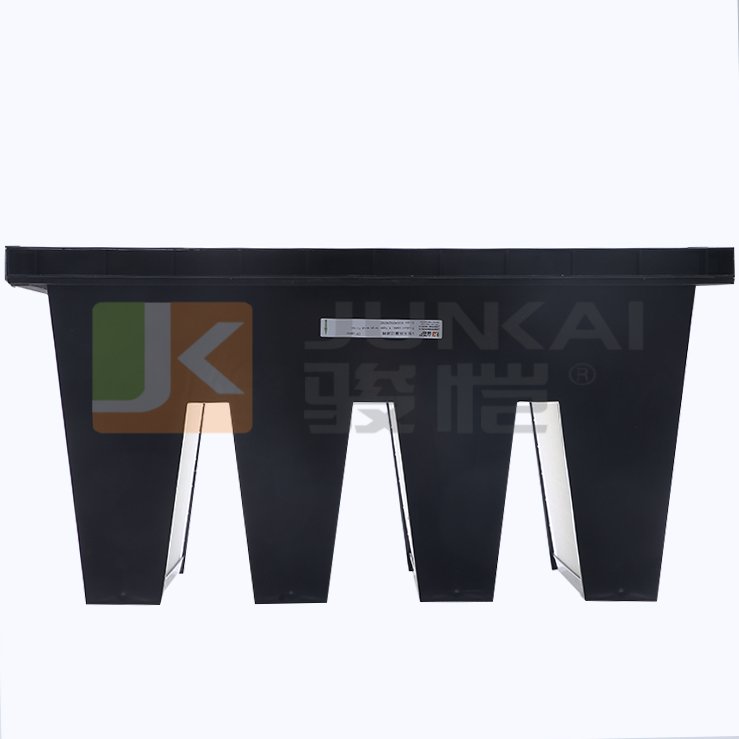

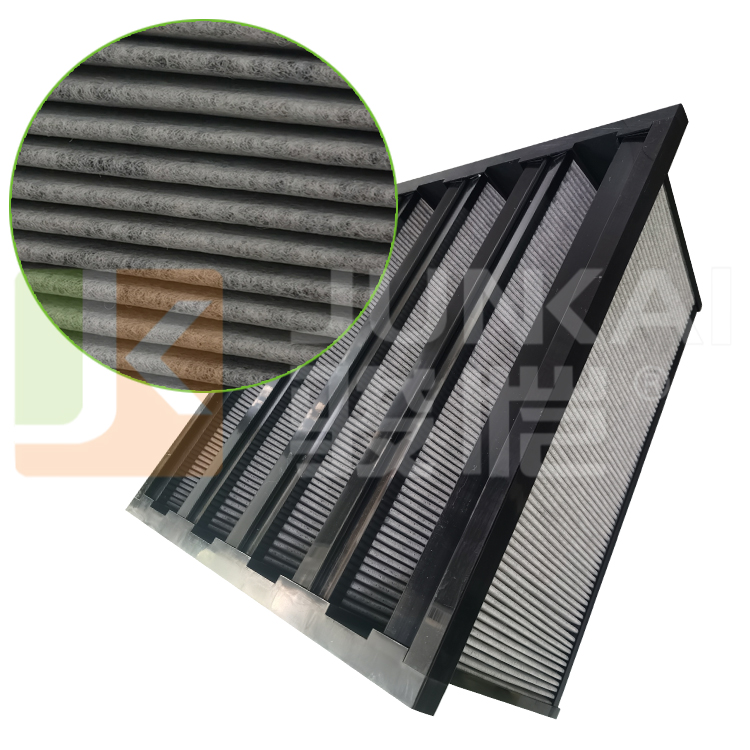

V-type large air volume filter, with ABS injection molded plastic frame (fixed standard size) and metal frame (non-standard customized size) as its frame, adopts V-type structure, which is st
手机
+8615901736546
电话咨询
+86 400 698 0996
frame: ABS engineering plastic outer frame (galvanized frame or stainless steel outer frame can be customized)
Filter material: superfine glass fiber; High dust capacity, low resistance
Efficiency: (EN779:2002) H10, H13, H14
（ASHRAE 52.2：2007）MERV16，MERV17，MERV19
Dimension (mm): 595 * 595 * 292595 * 295 * 292495 * 495 * 292610 * 610 * 292.
Application:
It is mainly used for large air volume air conditioning purification equipment, such as medium efficiency filtration and terminal filtration of air conditioning box system.
Common specifications
Model W x H x D | Dimensions W x H x D(mm) | Structure | Frame | Media Area (m²) | Rated Air Flow (m³/h) | Initial Pressure Drop(Pa) H10 H13 H14 |
JHV1212-2V | 287X287X292 | 2V | 4.2 | 800 |
| |
JHV1220-2V | 287X490X292 | 塑框/金属框 | 7.7 | 1200 | ||
JHV1224-2V | 287X592X292 | 9.4 | 1600 | |||
JHV2012-3V | 490X287X292 | 3V | 6.4 | 1000 | ||
JHV2020-3V | 490X490X292 | 塑框/金属框 | 11.6 | 1800 | ||
JHV2024-3V | 490X592X292 | 14.4 | 2200 | |||
JHV2412-3VF | 592X287X292 | 3V | 6.4 | 1100 | ||
JHV2420-3V | 592X490X292 | 塑框/金属框 | 11.6 | 1900 | ||
JHV2424-3V | 592X592X292 | 14.4 | 2400 | |||
JHV2412-4V | 592X287X292 | 4V | 8.4 | 1600 | ||
JHV2420-4V | 592X490X292 | 塑框/金属框 | 15.4 | 2500 | ||
JHV2424-4V | 592X592X292 | 18.8 | 3200 | |||
JHV2412-5V | 592X287X292 | 5V | 10.5 | 1800 | ||
JHV2420-5V | 592X490X292 | 塑框/金属框 | 19.0 | 3200 | ||
JHV2424-5V | 592X592X292 | 23.5 | 3900
|
In case of changes in specifications, structure and performance, the latest data provided by our company shall prevail
The company accepts orders of non-standard specifications
